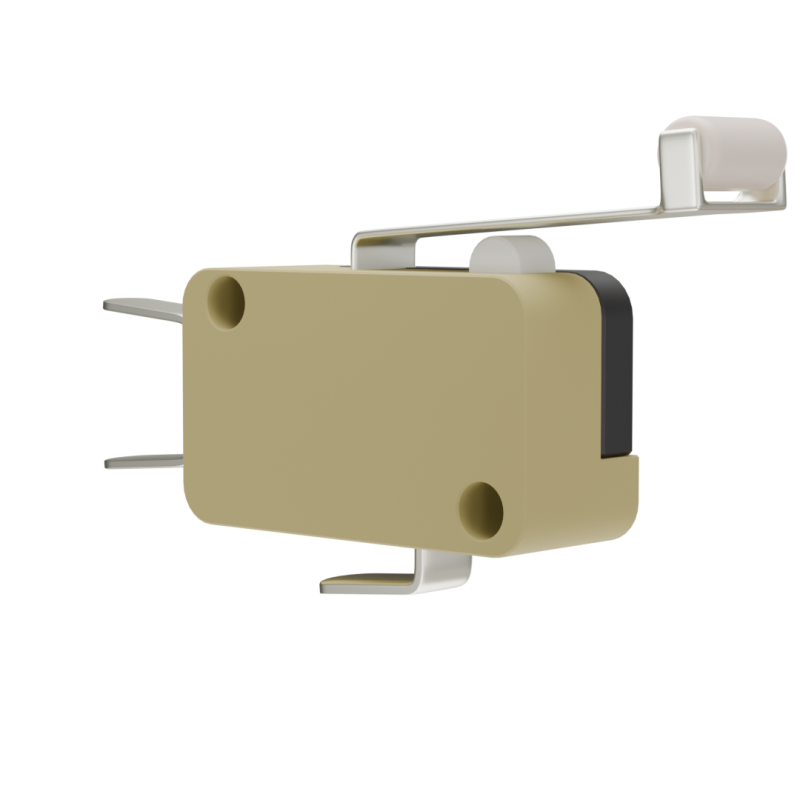

XGG6-88-S21Z1
FR : 0
CH : 1
XGG Saia Microswitch
- Reference : XGG6-88-S21Z1
- Rating : 250 VAC / 26 A max
- Dimensions (mm) : 27.8 x 15.9 x 10.3
- Protection : Enclosure IP40
- Actuating Force (N) : 3.2
- Circuit : Change-over
- Terminals : Faston 4.8 x 0.5
- Contacts : Ag / AgNi10
- Actuators : Roller lever
- Approvals : UL / CSA

Guarantee safe & secure checkout
Download
