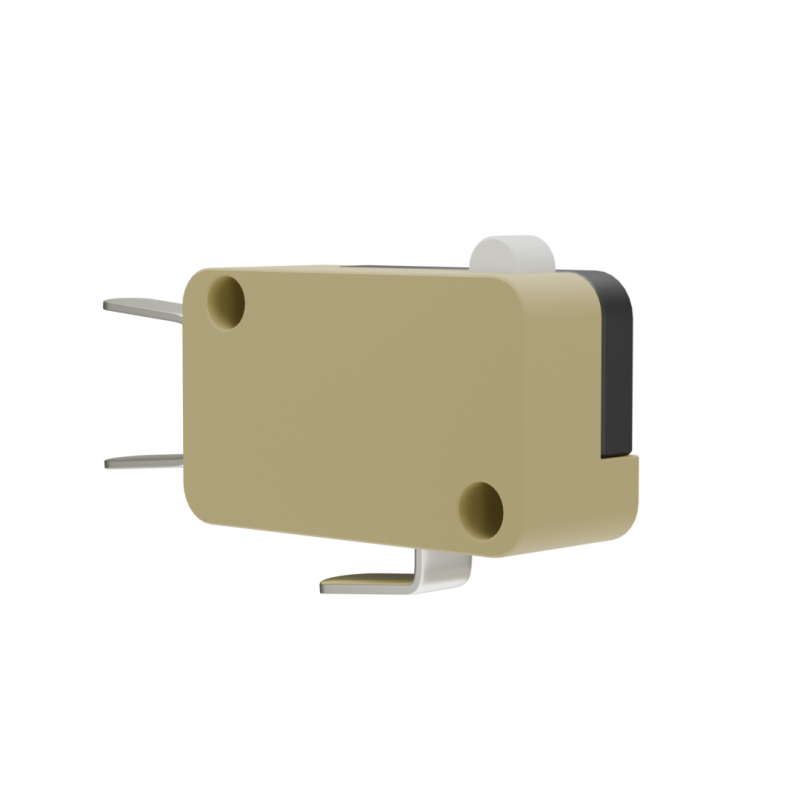

Image is for illustrative purposes only. Please refer to product description.
XGG2-81Z1
From:
€3.29
Indicative price (excl. VAT)
Quantity available:
FR : 0
CH : 1459
XGG Saia Microswitch
FR : 0
CH : 1459
XGG Saia Microswitch
- Reference : XGG2-81Z1
- Rating : 250 VAC / 26 A max
- Dimensions (mm) : 27.8 x 15.9 x 10.3
- Protection : Enclosure IP40
- Actuating Force (N) : 3.2
- Circuit : Change-over
- Terminals : Faston 6.3 x 0.8
- Contacts : Gold-plated 4um (Au) on Ag
- Actuators : Without lever
- Approvals : UL / CSA
Guarantee safe & secure checkout
Data sheet
- Dimensions (mm)
- 27.8 x 15.9 x 10.3
- Circuit
- change-over
- Actuating Force
- 3.2 N
- Terminals
- Faston 6.3 x 0.8
- Approvals
- CSA
UL - Contacts Material
- Gold plate on AG
- Actuators
- NO
- Rating
- 250 VAC / 26 A
16 other products in the same category:
XP52-E1
€3.75
Quantity available:
FR : 0
CH : 909
XP Burgess Microswitch
FR : 0
CH : 909
XP Burgess Microswitch
- Reference : XP52-E1
- Rating : 400 VAC / 16 A
- Dimensions (mm) : 30 x 32 x 12
- Protection : IP40 enclosure
- Type : Momentary
- Actuating Force (N) :
- Circuit : Normally open (NO)
- Terminals : Faston 6.3 x 0.8
- Contacts : Silver
- Actuators : Mushroom plunger with reset spring
- Approvals :
X3M302N2KAJ62
€1.31
Quantity available:
FR : 0
CH : 100
X3 Saia Microswitch
FR : 0
CH : 100
X3 Saia Microswitch
- Reference : X3M302N2KAJ62
- Rating : 250 VAC / 25 A max
- Dimensions (mm) : 27.8 x 15.9 x 10.3
- Protection : IP 40 enclosure
- Actuating Force (N) : 0.57
- Circuit : Change-over
- Terminals : Plug terminal 6.3 x 0.8 mm
- Contacts : Silver / AgNi10
- Actuators : Straight lever (width 7mm)
XCG9Z1
€1.13
Quantity available:
FR : 0
CH : 479
XCG Saia Microswitch
FR : 0
CH : 479
XCG Saia Microswitch
- Reference : XCG9Z1
- Rating : 250 VAC / 10 A max
- Dimensions (mm) : 19.9 x 9.5 x 6.4
- Protection : Enclosure IP40
- Actuating Force (N) : 1.7
- Circuit : Change-over
- Terminals : PCB 1/10/'' pitch L=45mm
- Contacts : Ag
- Actuators : Without lever
- Approvals : UL / CSA
