    XGG2-88-L20 - Saia
XGG2-88-L20 - Saia

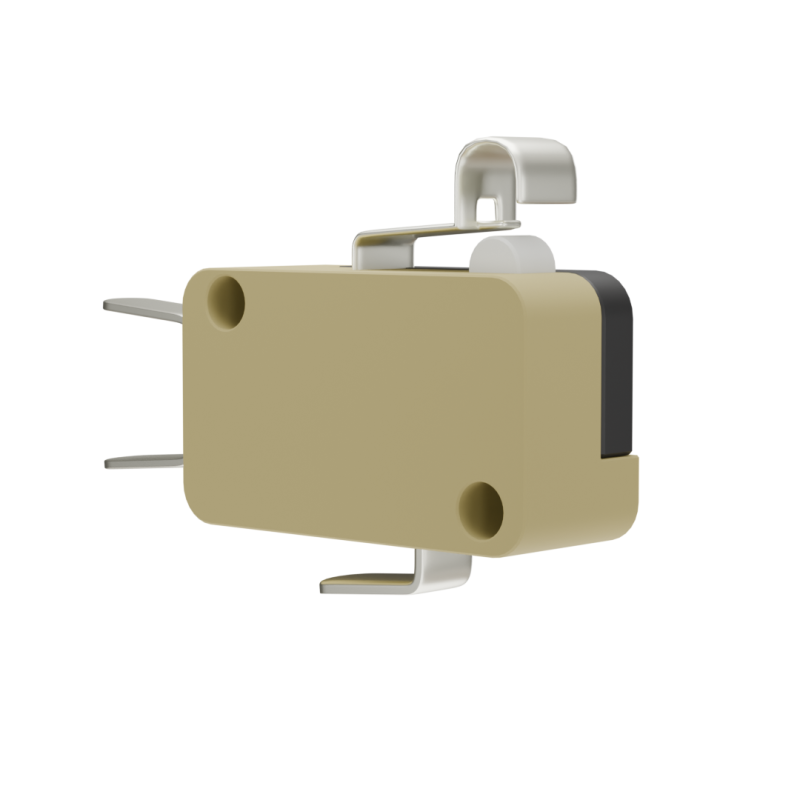

Image is for illustrative purposes only. Please refer to product description.




XGG2-88-L20

From:
€2.16
Indicative price (excl. VAT)
Quotation request
Quantity available:
FR : 0
CH : 949

XGG Saia Microswitch
  • Reference : XGG2-88-L20
  • Rating : 250 VAC / 26 A max
  • Dimensions (mm) : 27.8 x 15.9 x 10.3
  • Protection : Enclosure IP40
  • Actuating Force (N) : 3.2
  • Circuit : Change-over
  • Terminals : Faston 6.3 x 0.8
  • Contacts : Ag / AgNi10
  • Actuators : Cam follower 12.8 mm
  • Approvals : ENEC

Guarantee safe & secure checkout

Data sheet

Dimensions (mm)
27.8 x 15.9 x 10.3
Circuit
change-over
Actuating Force
3.2 N
Terminals
Faston 6.3 x 0.8
Approvals
ENEC
Contacts Material
Ag / AgNi10
Actuators
Cam follower lever
Rating
250 VAC / 26 A
