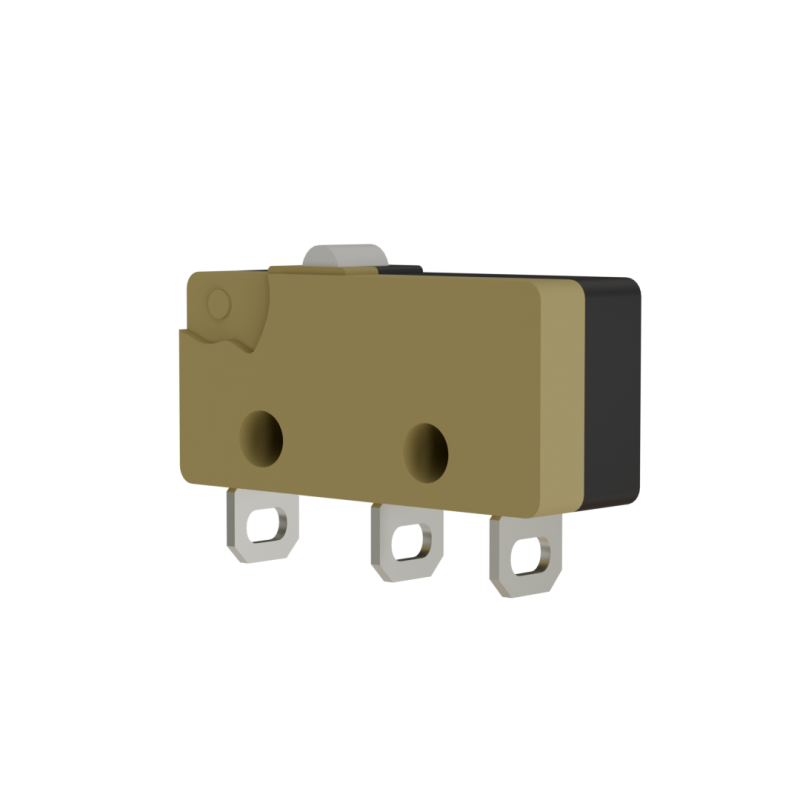

Image is for illustrative purposes only. Please refer to product description.




XCG10

From:
€1.59
Indicative price (excl. VAT)
Quantity available:
FR : 0
CH : 899

XCG Saia Microswitch
  • Reference : XCG10
  • Rating : 250 VAC / 10 A max
  • Dimensions (mm) : 19.9 x 9.5 x 6.4
  • Protection : Enclosure IP40
  • Actuating Force (N) : 1.7
  • Circuit : Change-over
  • Terminals : PCB. Formed to base
  • Contacts : Ag
  • Actuators : Without lever
  • Approvals : ENEC

Guarantee safe & secure checkout

Data sheet

Dimensions (mm)
19.9 x 9.5 x 6.4
Circuit
change-over
Actuating Force
1.7 N
Terminals
PCB formed to base
Approvals
ENEC
Contacts Material
Ag
Actuators
NO
Rating
250 VAC / 10 A
