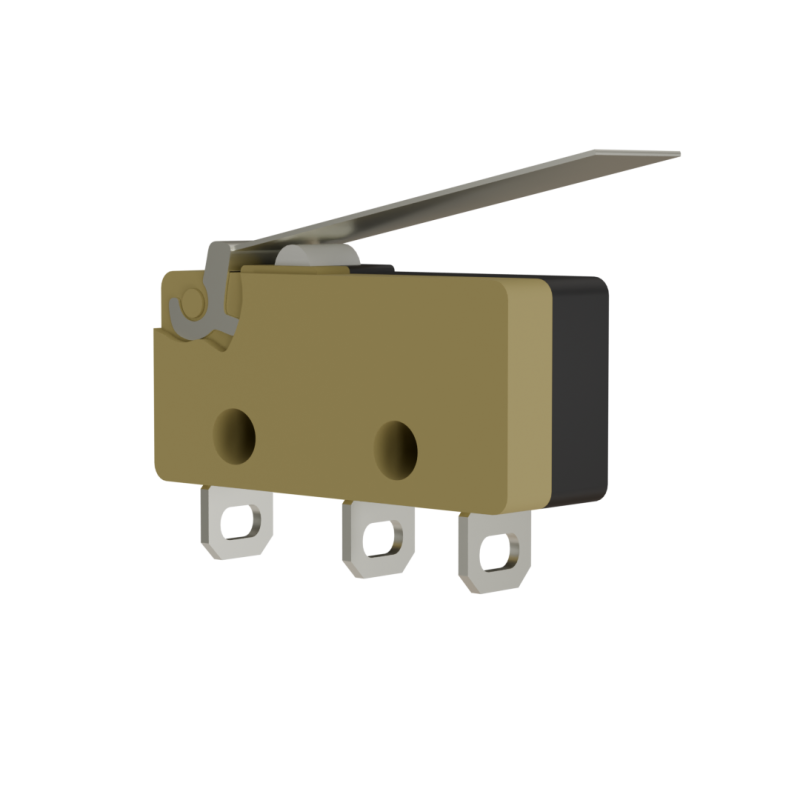

Image is for illustrative purposes only. Please refer to product description.
XCC13-J2
From:
€2.55
Indicative price (excl. VAT)
Quantity available:
FR : 0
CH : 6
XCC Saia Microswitch
FR : 0
CH : 6
XCC Saia Microswitch
- Reference : XCC13-J2
- Rating : 250 VAC / 10 A max
- Dimensions (mm) : 19.9 x 9.5 x 6.4
- Protection : Enclosure IP40
- Actuating Force (N) : 0.6
- Circuit : Change-over
- Terminals : PCB. Formed to lid. 1/10'' pitch
- Contacts : Ag
- Actuators : Plain lever 25.0 mm
- Approvals : ENEC
Guarantee safe & secure checkout
Data sheet
- Dimensions (mm)
- 19.9 x 9.5 x 6.4
- Circuit
- change-over
- Actuating Force
- 0.6 N
- Terminals
- PCB formed to lid 1/10" pitch
- Approvals
- ENEC
- Contacts Material
- Ag
- Actuators
- Plain lever
- Rating
- 250 VAC / 10 A
