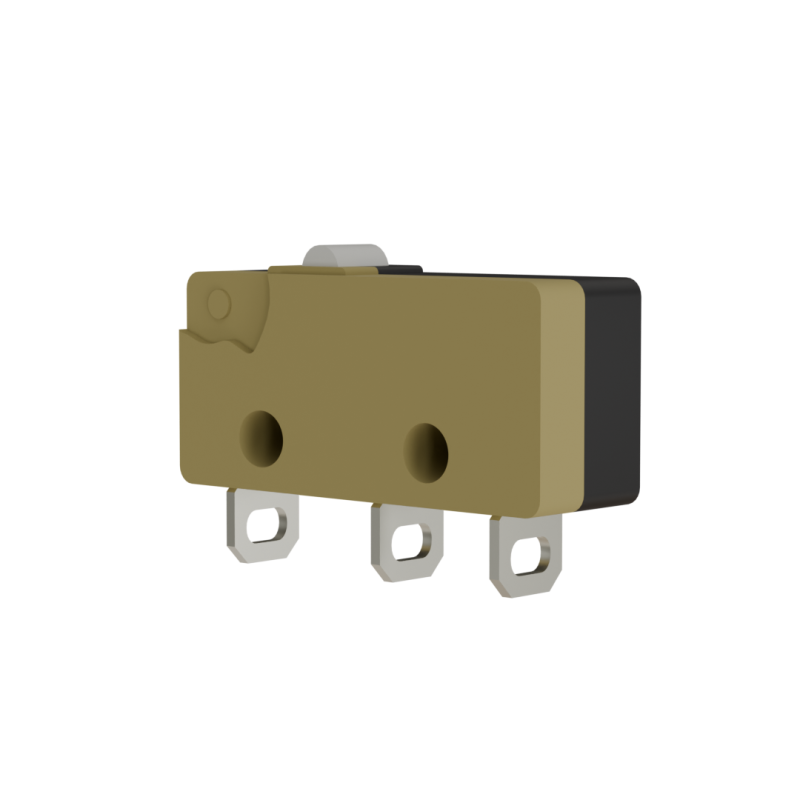

Image is for illustrative purposes only. Please refer to product description.
XCC3Z1
From:
€2.34
Indicative price (excl. VAT)
Quantity available:
FR : 0
CH : 53
XCC Saia Microswitch
FR : 0
CH : 53
XCC Saia Microswitch
- Reference : XCC3Z1
- Rating : 250 VAC / 10 A max
- Dimensions (mm) : 19.9 x 9.5 x 6.4
- Protection : Enclosure IP40
- Actuating Force (N) : 0.6
- Circuit : Change-over
- Terminals : Solder
- Contacts : Ag
- Actuators : Without lever
- Approvals : UL / CSA
Guarantee safe & secure checkout
Data sheet
- Dimensions (mm)
- 19.9 x 9.5 x 6.4
- Circuit
- change-over
- Actuating Force
- 0.6 N
- Terminals
- Solder
- Approvals
- CSA
UL - Contacts Material
- Ag
- Actuators
- NO
- Rating
- 250 VAC / 10 A
