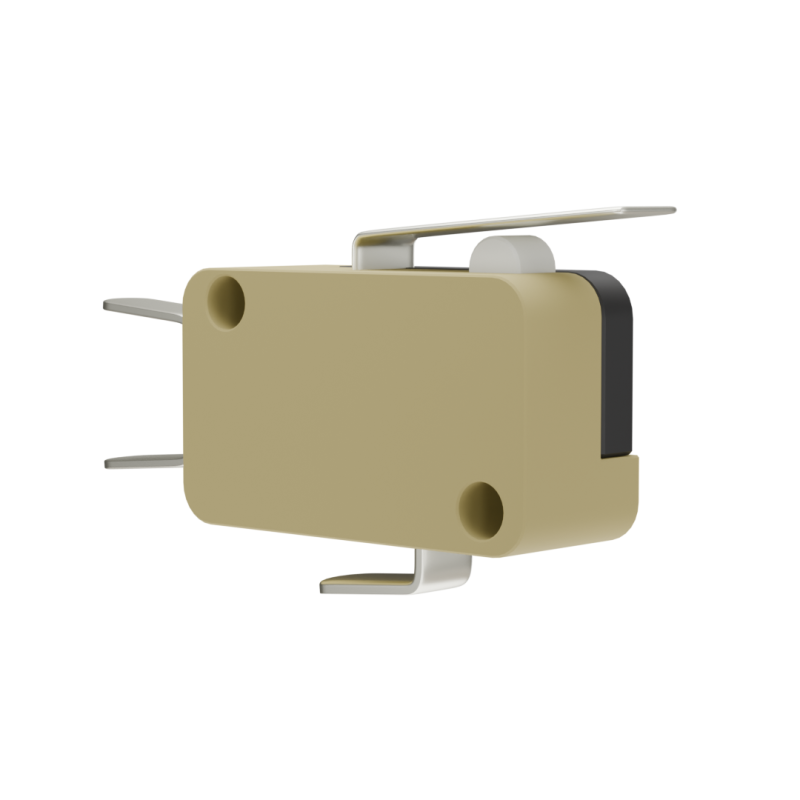

XGA2-86-J23

From:
€1.87
Indicative price (excl. VAT)
Quotation request
Quantity available:
FR : 0
CH : 2

XGA Saia Microswitch
  • Reference : XGA2-86-J23
  • Rating : 250 VAC / 26 A max
  • Dimensions (mm) : 27.8 x 15.9 x 10.3
  • Protection : Enclosure IP40
  • Actuating Force (N) : 3.2
  • Circuit : Change-over
  • Terminals : Faston 6.3 x 0.8
  • Contacts : Ag / Ag CdO
  • Actuators : Plain lever 27.8 mm
  • Approvals : ENEC

Guarantee safe & secure checkout

Data sheet

Dimensions (mm)
27.8 x 15.9 x 10.3
Circuit
change-over
Actuating Force
3.2 N
Terminals
Solder 1.7 x 3.2
Approvals
ENEC
Contacts Material
Ag / Ag Cd0
Actuators
Plain lever
Rating
250 VAC / 26 A

16 other products in the same category:

XGC2-88Z1 - Saia
Saia

XGC2-88Z1

€1.59
Quantity available:
FR : 0
CH : 0

XGC Saia Microswitch
  • Reference : XGC2-88Z1
  • Rating : 250 VAC / 26 A max
  • Dimensions (mm) : 27.8 x 15.9 x 10.3
  • Protection : Enclosure IP40
  • Actuating Force (N) : 0.8
  • Circuit : Change-over
  • Terminals : Faston 6.3 x 0.8
  • Contacts : Ag / AgNi10
  • Actuators : Without lever
  • Approvals : UL / CSA
XCG3W-81Z1 - Saia
Saia

XCG3W-81Z1

€1.69
Quantity available:
FR : 0
CH : 263

XCG Saia Microswitch
  • Reference : XCG3W-81Z1
  • Rating : 250 VAC / 10 A max
  • Dimensions (mm) : 19.9 x 9.5 x 6.4
  • Protection : Enclosure IP40
  • Actuating Force (N) : 1.7
  • Circuit : Change-over
  • Terminals : Solder
  • Contacts : u profile Au 10 um
  • Actuators : Without lever
  • Approvals : UL / CSA
