    XCF3-81Z1 - Saia
XCF3-81Z1 - Saia

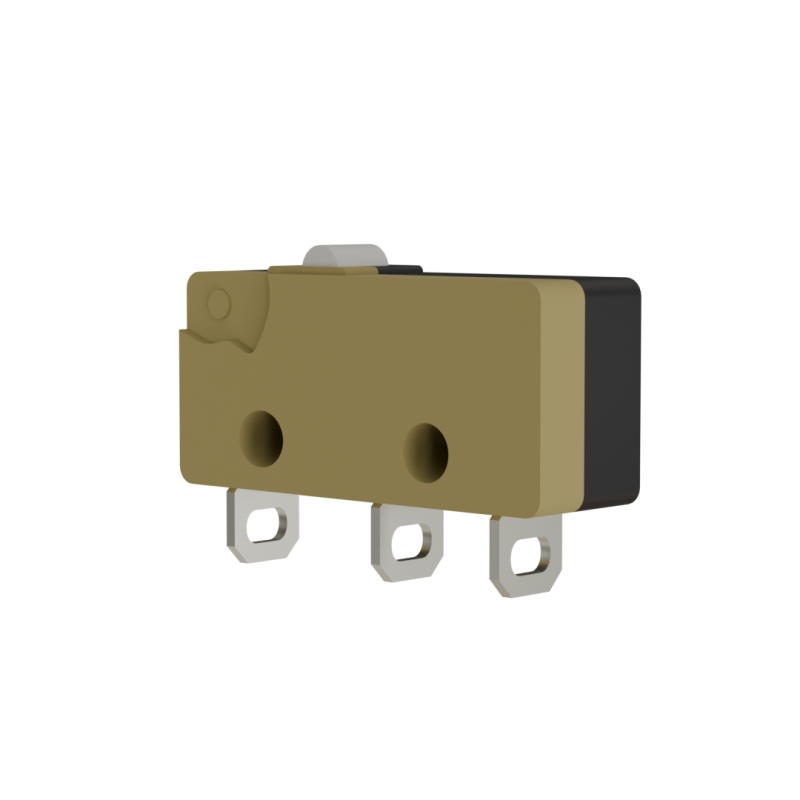

Image is for illustrative purposes only. Please refer to product description.




XCF3-81Z1

From:
€1.59
Indicative price (excl. VAT)
Quotation request
Quantity available:
FR : 0
CH : 295

XCF Saia Microswitch
  • Reference : XCF3-81Z1
  • Rating : 250 VAC / 10 A max
  • Dimensions (mm) : 19.9 x 9.5 x 6.4
  • Protection : Enclosure IP40
  • Actuating Force (N) : 3
  • Circuit : Change-over
  • Terminals : Solder
  • Contacts : u profile Au 10 um
  • Actuators : Without lever
  • Approvals : UL / CSA

Guarantee safe & secure checkout

Data sheet

Dimensions (mm)
19.9 x 9.5 x 6.4
Circuit
change-over
Actuating Force
3 N
Terminals
Solder
Approvals
CSA
UL
Contacts Material
Gold plate on AG
Actuators
NO
Rating
250 VAC / 10 A
