    F4T7GPUL - Burgess
F4T7GPUL - Burgess

Image is for illustrative purposes only. Please refer to product description.




F4T7GPUL

From:
€3.84
Indicative price (excl. VAT)
Quotation request
Quantity available:
FR : 0
CH : 1142

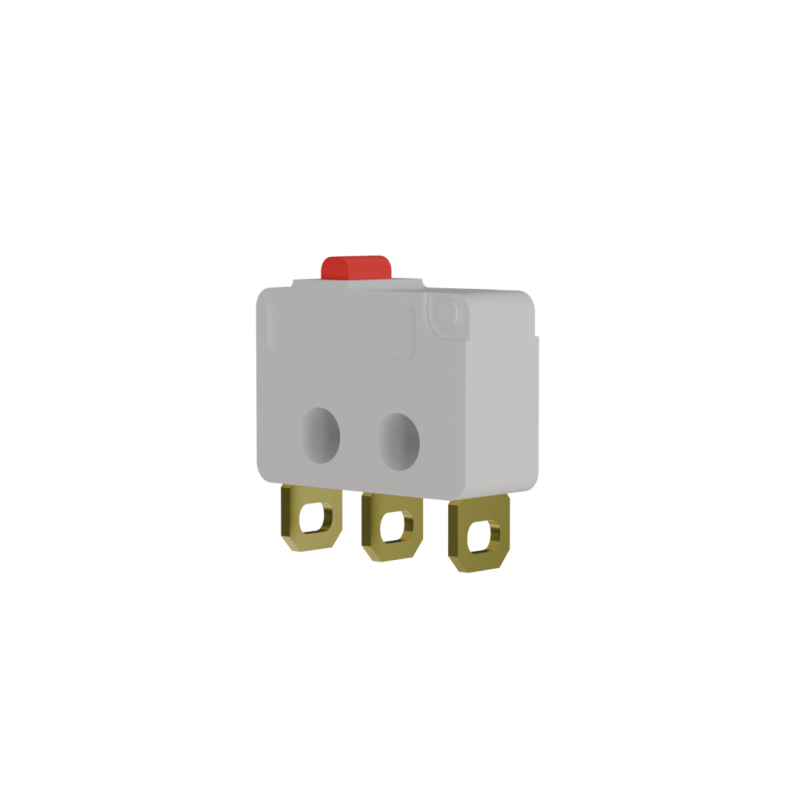

F4 Burgess Microswitch

Guarantee safe & secure checkout

Data sheet

Dimensions (mm)
12.8 x 10 x 5
Circuit
change-over
Terminals
Solder 3.50 x 0.5 x 3.6 long
Approvals
CSA
UL
Contacts Material
Gold plate on AG
Actuators
NO
Rating
250 VAC / 5 A

16 other products in the same category:

XCC12-J4 - Saia
Saia

XCC12-J4

€2.16
Quantity available:
FR : 0
CH : 200

XCC Saia Microswitch
  • Reference : XCC12-J4
  • Rating : 250 VAC / 10 A max
  • Dimensions (mm) : 19.9 x 9.5 x 6.4
  • Protection : Enclosure IP40
  • Actuating Force (N) : 0.6
  • Circuit : Change-over
  • Terminals : PCB. Formed to base. 1/10'' pitch
  • Contacts : Ag
  • Actuators : Plain lever
  • Approvals : ENEC
XGA52W-88Z1 - Saia
Saia

XGA52W-88Z1

€3.84
Quantity available:
FR : 0
CH : 42

XGA Saia Microswitch
  • Reference : XGA52W-88Z1
  • Rating : 250 VAC / 26 A max
  • Dimensions (mm) : 27.8 x 15.9 x 10.3
  • Protection : Enclosure IP40
  • Actuating Force (N) : 3.2
  • Circuit : Normally open (NO)
  • Terminals : Faston 6.3 x 0.9
  • Contacts : Ag / AgNi10
  • Actuators : Without lever
  • Approvals : UL / CSA
