    XGO2-88-J27Z1 - Saia
XGO2-88-J27Z1 - Saia

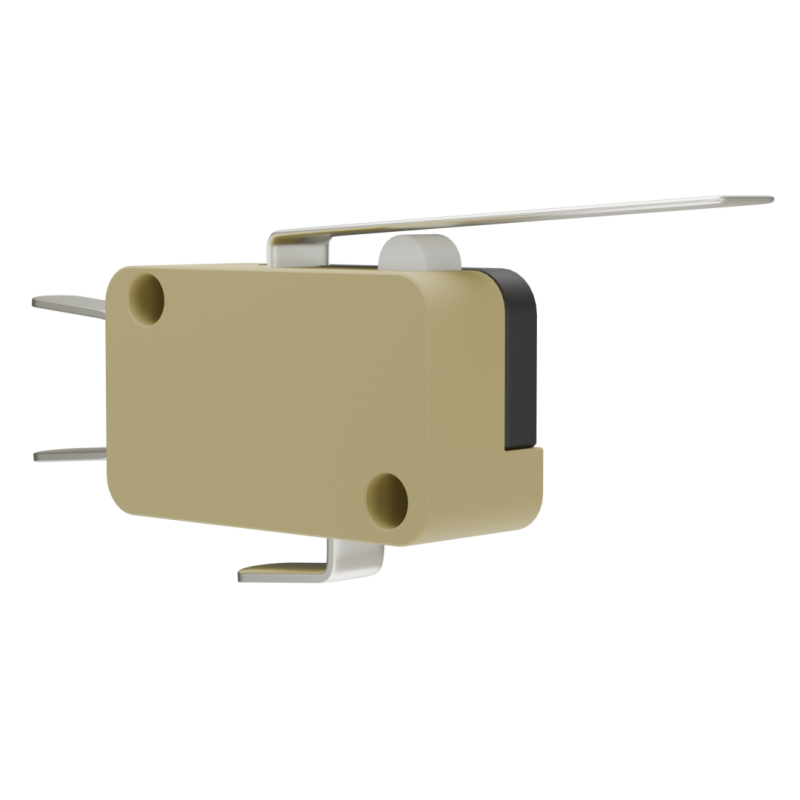

Image is for illustrative purposes only. Please refer to product description.




XGO2-88-J27Z1

From:
€2.72
Indicative price (excl. VAT)
Quotation request
Quantity available:
FR : 0
CH : 600

XGO Saia Microswitch
  • Reference : XGO2-88-J27Z1
  • Rating : 250 VAC / 26 A max
  • Dimensions (mm) : 27.8 x 15.9 x 10.3
  • Protection : Enclosure IP40
  • Actuating Force (N) : 1.2
  • Circuit : Change-over
  • Terminals : Faston 6.3 x 0.8
  • Contacts : Ag / AgNi10
  • Actuators : Plain lever 60.0 mm
  • Approvals : UL / CSA

Guarantee safe & secure checkout

Data sheet

Dimensions (mm)
27.8 x 15.9 x 10.3
Circuit
change-over
Actuating Force
1.2 N
Terminals
Faston 6.3 x 0.8
Approvals
CSA
UL
Contacts Material
Ag / AgNi10
Actuators
Plain lever
Rating
250 VAC / 26 A
