    XGK12-88-S41 - Saia
XGK12-88-S41 - Saia

Image is for illustrative purposes only. Please refer to product description.




XGK12-88-S41

From:
€1.87
Indicative price (excl. VAT)
Quotation request
Quantity available:
FR : 0
CH : 100

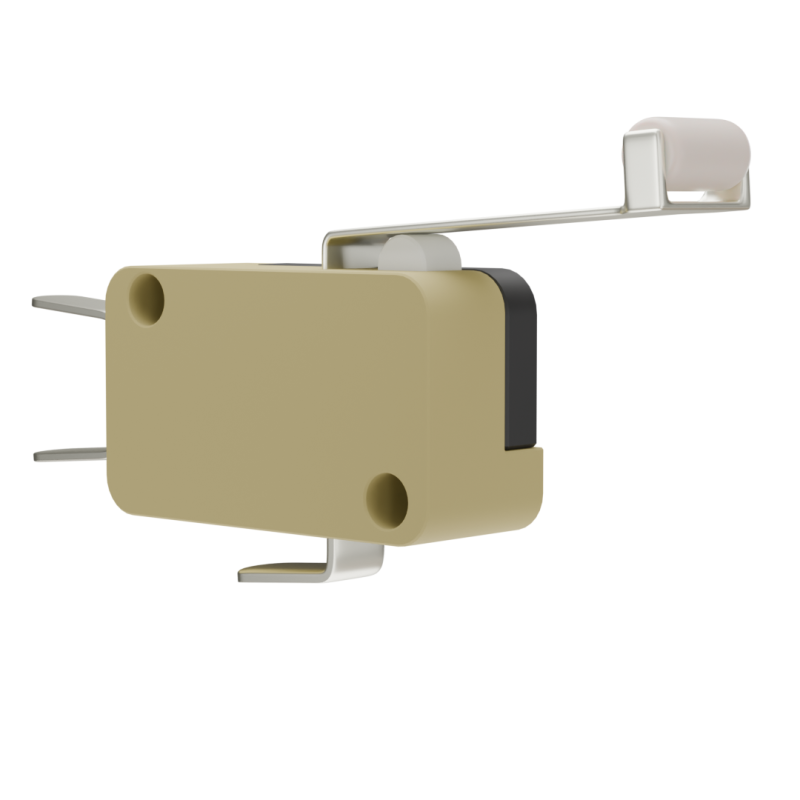

XGK Saia Microswitch
  • Reference : XGK12-88-S41
  • Rating : 250 VAC / 26 A max
  • Dimensions (mm) : 27.8 x 15.9 x 10.3
  • Protection : Enclosure IP40
  • Actuating Force (N) : 1.5
  • Circuit : Change-over
  • Terminals : Short solder D2.3
  • Contacts : Ag / AgNi10
  • Actuators : Roller lever
  • Approvals : ENEC

Guarantee safe & secure checkout

Data sheet

Dimensions (mm)
27.8 x 15.9 x 10.3
Circuit
change-over
Actuating Force
1.5 N
Terminals
Short solder diam. 2.3
Approvals
ENEC
Contacts Material
Ag / AgNi10
Actuators
Roller lever
Rating
250 VAC / 26 A
