V4NCST9
FR : 0
CH : 64

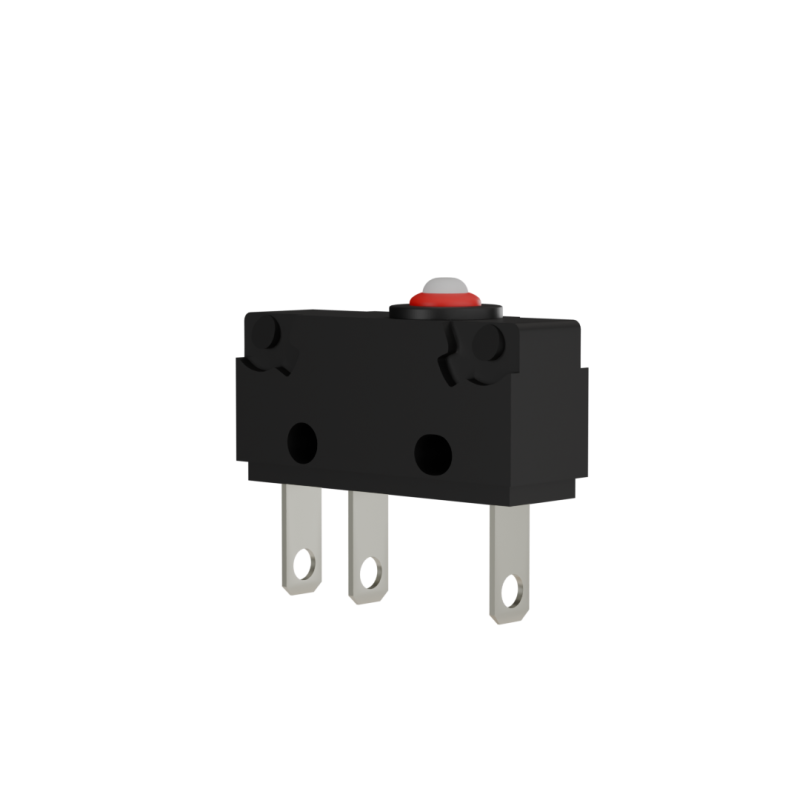

V4N Saia Microswitch
- Reference : V4NCST9
- Rating : 250 VAC / 5A
- Dimensions (mm) : 20 x 10.3 x 6.4
- Type of sealing : Sealed IP6K7 standard travel
- Terminals : Faston 2.8 x 0.5 x 9.5 long
- Circuit : Change-over
- Actuators : without lever
- Contact Material : Ag
- Approval : none

Guarantee safe & secure checkout
