    XGH15-88-S20 - Saia
XGH15-88-S20 - Saia

Image is for illustrative purposes only. Please refer to product description.




XGH15-88-S20

From:
€2.06
Indicative price (excl. VAT)
Quotation request
Quantity available:
FR : 0
CH : 80

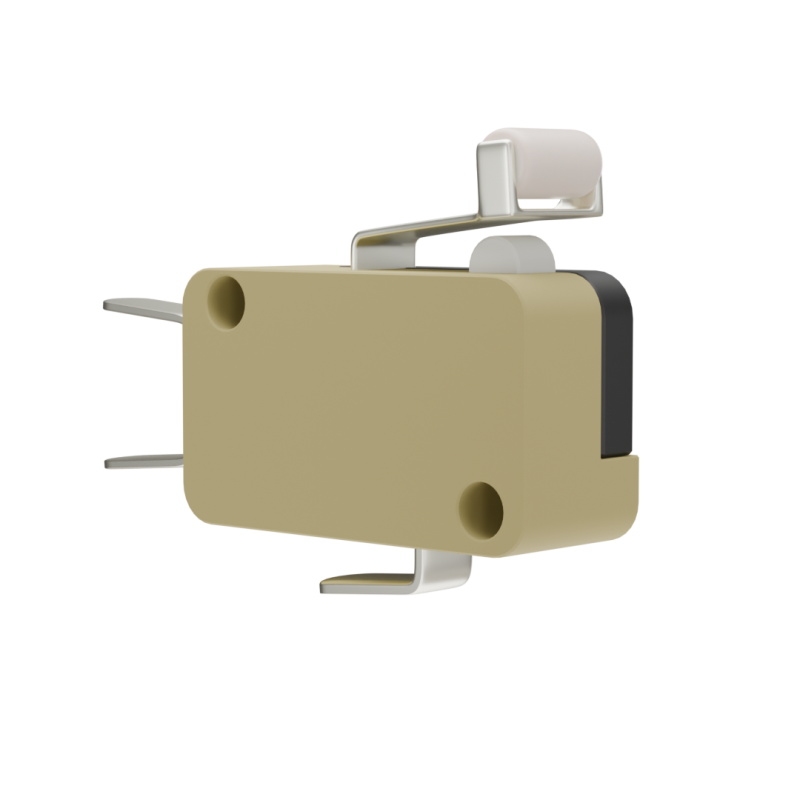

XGH Saia Microswitch
  • Reference : XGH15-88-S20
  • Rating : 250 VAC / 26 A max
  • Dimensions (mm) : 27.8 x 15.9 x 10.3
  • Protection : Enclosure IP40
  • Actuating Force (N) : 0.45
  • Circuit : Change-over
  • Terminals : Rast 5 6.3 x 0.8
  • Contacts : Ag / AgNi10
  • Actuators : Roller lever 12.8 mm
  • Approvals : ENEC

Guarantee safe & secure checkout

Data sheet

Dimensions (mm)
27.8 x 15.9 x 10.3
Circuit
change-over
Actuating Force
0.45 N
Terminals
Rast 5 6.3 x 0.8
Approvals
ENEC
Contacts Material
Ag / AgNi10
Actuators
Roller lever
Rating
250 VAC / 26 A
