    XCG3V-81 - Saia
XCG3V-81 - Saia

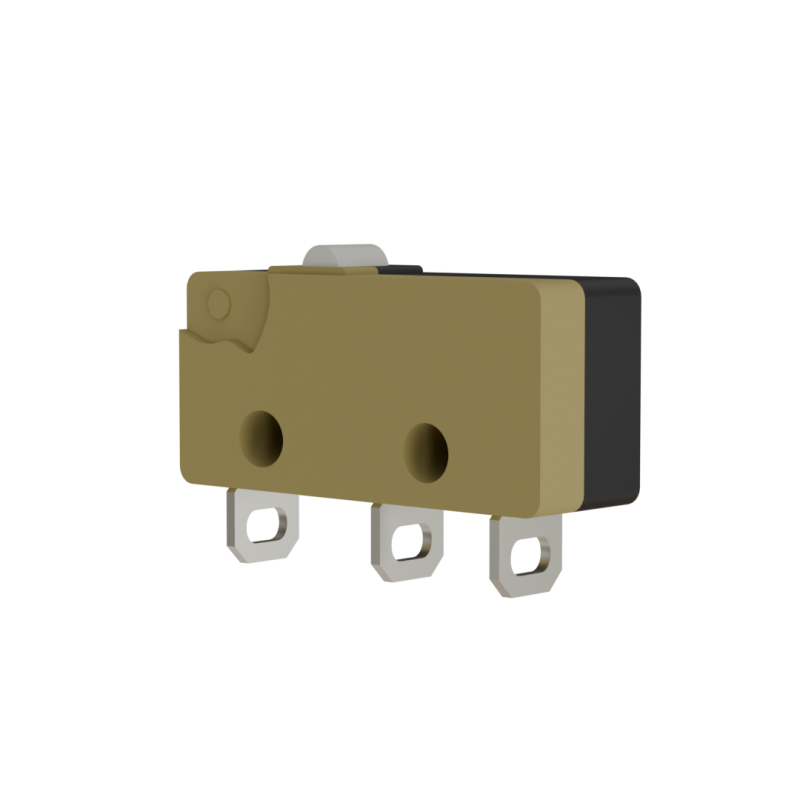

Image is for illustrative purposes only. Please refer to product description.




XCG3V-81

From:
€1.69
Indicative price (excl. VAT)
Quotation request
Quantity available:
FR : 0
CH : 106

XCG Saia Microswitch
  • Reference : XCG3V-81
  • Rating : 250 VAC / 10 A max
  • Dimensions (mm) : 19.9 x 9.5 x 6.4
  • Protection : Enclosure IP40
  • Actuating Force (N) : 1.7
  • Circuit : Change-over
  • Terminals : Solder
  • Contacts : u profile Au 10 um
  • Actuators : Without lever
  • Approvals :

Guarantee safe & secure checkout

Data sheet

Dimensions (mm)
19.9 x 9.5 x 6.4
Circuit
change-over
Actuating Force
1.7 N
Terminals
Solder
Approvals
NO
Contacts Material
Gold plate on AG
Actuators
NO
Rating
250 VAC / 10 A
