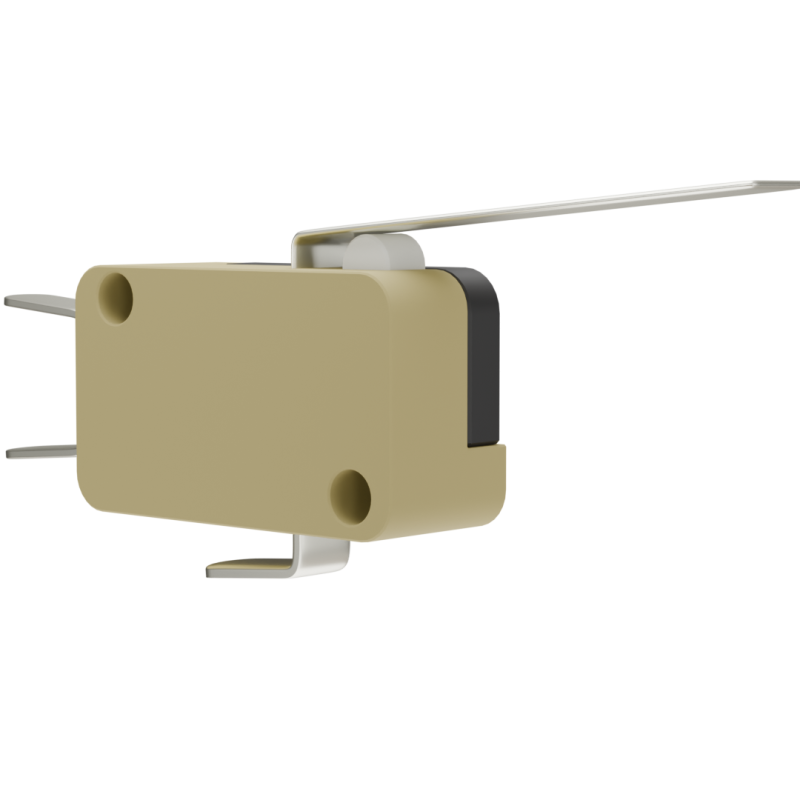

    XGH2-88-P47Z1 - Saia
XGH2-88-P47Z1 - Saia

Image is for illustrative purposes only. Please refer to product description.




XGH2-88-P47Z1

From:
€2.34
Indicative price (excl. VAT)
Quotation request
Quantity available:
FR : 0
CH : 50

XGH Saia Microswitch
  • Reference : XGH2-88-P47Z1
  • Rating : 250 VAC / 26 A max
  • Dimensions (mm) : 27.8 x 15.9 x 10.3
  • Protection : Enclosure IP40
  • Actuating Force (N) : 0.45
  • Circuit : Change-over
  • Terminals : Faston 6.3 x 0.8
  • Contacts : Ag / AgNi10
  • Actuators :
  • Approvals : UL / CSA

Guarantee safe & secure checkout

Data sheet

Dimensions (mm)
27.8 x 15.9 x 10.3
Circuit
change-over
Actuating Force
0.45 N
Terminals
Faston 6.3 x 0.8
Approvals
CSA
UL
Contacts Material
Ag / AgNi10
Rating
250 VAC / 26 A

16 other products in the same category:

XCG9Z1 - Saia
Saia

XCG9Z1

€1.13
Quantity available:
FR : 0
CH : 479

XCG Saia Microswitch
  • Reference : XCG9Z1
  • Rating : 250 VAC / 10 A max
  • Dimensions (mm) : 19.9 x 9.5 x 6.4
  • Protection : Enclosure IP40
  • Actuating Force (N) : 1.7
  • Circuit : Change-over
  • Terminals : PCB 1/10/'' pitch L=45mm
  • Contacts : Ag
  • Actuators : Without lever
  • Approvals : UL / CSA
XGG6-88-S21Z1 - Saia
Saia

XGG6-88-S21Z1

€2.34
Quantity available:
FR : 0
CH : 1

XGG Saia Microswitch
  • Reference : XGG6-88-S21Z1
  • Rating : 250 VAC / 26 A max
  • Dimensions (mm) : 27.8 x 15.9 x 10.3
  • Protection : Enclosure IP40
  • Actuating Force (N) : 3.2
  • Circuit : Change-over
  • Terminals : Faston 4.8 x 0.5
  • Contacts : Ag / AgNi10
  • Actuators : Roller lever
  • Approvals : UL / CSA
XGG2-88-S21Z1 - Saia
Saia

XGG2-88-S21Z1

€2.34
Quantity available:
FR : 0
CH : 306

XGG Saia Microswitch
  • Reference : XGG2-88-S21Z1
  • Rating : 250 VAC / 26 A max
  • Dimensions (mm) : 27.8 x 15.9 x 10.3
  • Protection : Enclosure IP40
  • Actuating Force (N) : 3.2
  • Circuit : Change-over
  • Terminals : Faston 6.3 x 0.8
  • Contacts : Ag / AgNi10
  • Actuators : Roller lever
  • Approvals : UL / CSA
V4NCT8AC - Burgess
Saia

V4NCT8AC

€2.16
Quantity available:
FR : 0
CH : 2

V4N Saia Microswitch
  • Reference : V4NCT8AC
  • Rating : 250 VAC / 5A
  • Dimensions (mm) : 20 x 10.3 x 6.4
  • Type of sealing : unsealed
  • Terminals : PCB 0.8 x 0.5 x 9.5 long
  • Circuit : Change-over
  • Actuators : Cam follower lever 18.5 mm
  • Contact Material : Ag
  • Approval : none
