    XGC2-81Z1 - Saia
XGC2-81Z1 - Saia

Image is for illustrative purposes only. Please refer to product description.

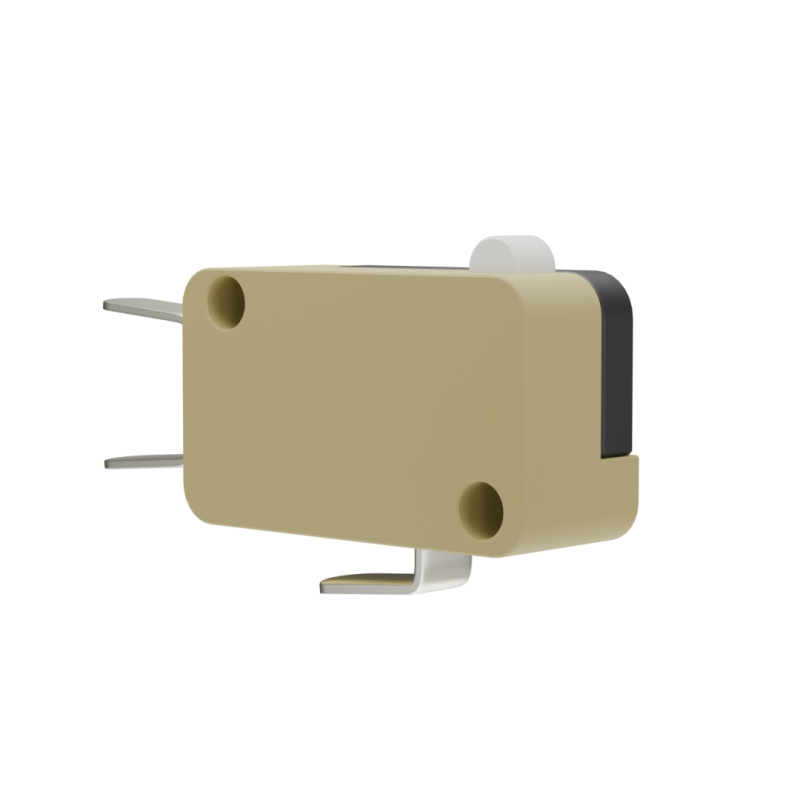

XGC2-81Z1

From:
€3.00
Indicative price (excl. VAT)
Quotation request
Quantity available:
FR : 0
CH : 25

XGC Saia Microswitch
  • Reference : XGC2-81Z1
  • Rating : 250 VAC / 26 A max
  • Dimensions (mm) : 27.8 x 15.9 x 10.3
  • Protection : Enclosure IP40
  • Actuating Force (N) : 0.8
  • Circuit : Change-over
  • Terminals : Faston 6.3 x 0.8
  • Contacts : Gold-plated 4um (Au) on Ag
  • Actuators : Without lever
  • Approvals : UL / CSA

Guarantee safe & secure checkout

Data sheet

Dimensions (mm)
27.8 x 15.9 x 10.3
Circuit
change-over
Actuating Force
0.8 N
Terminals
Faston 6.3 x 0.8
Approvals
CSA
UL
Contacts Material
Gold plate on AG
Actuators
NO
Rating
250 VAC / 26 A
