Johnson Electric

Image is for illustrative purposes only. Please refer to product description.

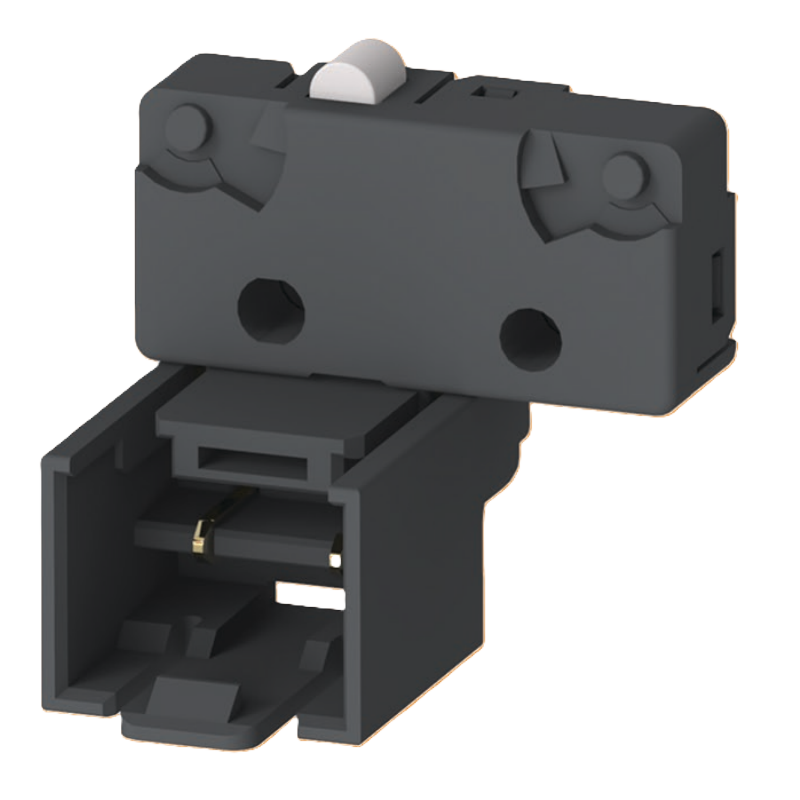

X4G5-RAST2.5

Dimensions	19.9mm x 18.7mm x 6.4mm/16.9mm
Switch type	Snap-Action
Circuit type	Normally Open
Operating Force N max.	2
AC Rating max.	-
DC Rating max.	5V, 1mA
Contact material	Silver
Mechanical cycles up to	1,000,000
Electrical cycles up to	1,000,000
Terminal type	RAST 2.5
Actuator type	Plunger
Approvals	UL
Mounting	Mounting holes
IP level	IP40
Operating temperature.°C	T85
Weight	2.64 g

Datasheet X4G5-RAST2.5 (1.14MB)
