Honeywell
FTSE60 - Honeywell

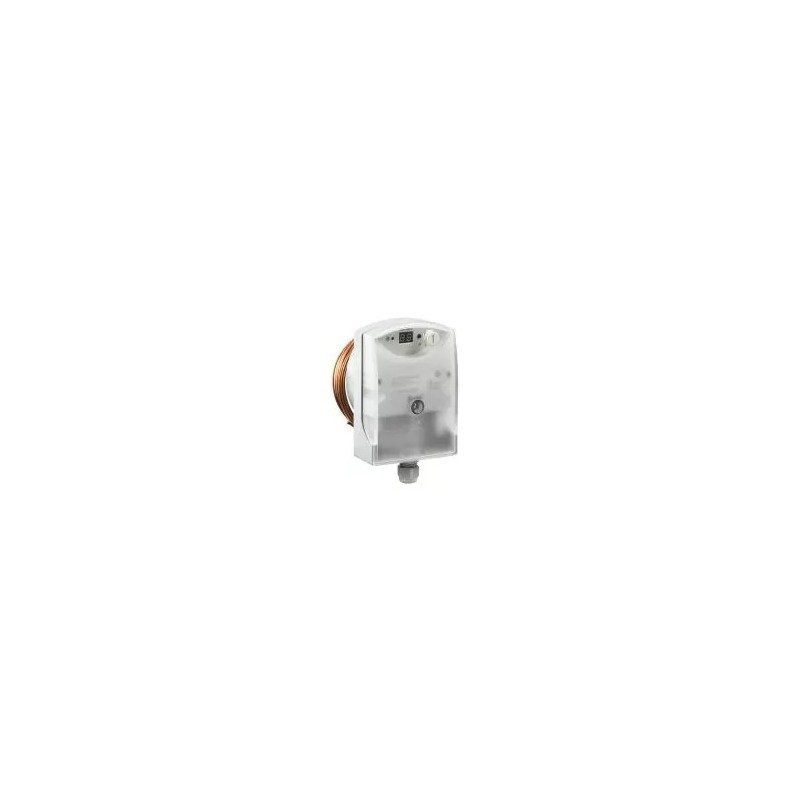

Image is for illustrative purposes only. Please refer to product description.

FTSE60

FTSE60

  • Reference : FTSE60
  • Measuring range: 0 … 15 °C
  • Setting range: 1 … 10 °C
  • Capillary tube length: 6 meters
  • Voltage supply: 24 VAC +10 / -20% SELV, 48 … 63 Hz
  • Valve control input: (Y1) 0 … 10 V, input current max.0.1 mA
  • Valve control output: (Y2) 0 … 10 V, load max. 1 mA
  • Transmitter output: (T) 0 … 15 °C = 0 … 10 V, load max.1 mA
  • Interference immunity: Industrial requirements
  • Perm. Ambient temp.: -15 … +55 °C (use) -25 … +65 °C (storage)
  • Fuse protection: Max. 10 A
  • Max. switching cap.: Relay output: 230 VAC, 6(2) A;24 VDC, 6A
  • Protection type: IP42 according to EN 60529
  • Mode of operation: According to 60730-1, type 1 B
  • 6-meter probe line, approx. 0.41 kg
Datasheet FTSE (345.73KB)

Availability on request

Indicative price (excluding VAT)
476.73 €
with quantity discount
Quotation request
